DIGITAL VACUUM CUM PRESSURE GAUGES
DIGITAL TEST GAUGES:

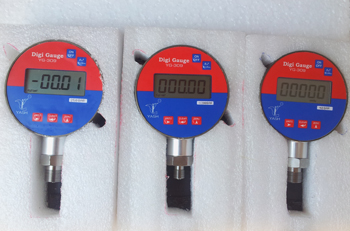

MODEL - YG 309
Technical Specification -STANDARD VERSION: 3.5”
Dial Size:
90mm
High resolution Imported Sensor gauge
Range:
(-) 1 to 1000 kg/cm2
Vacuum Range:
(-) 1 to 0Kg/cm2, Pressure Range: 0 to 1000 kg/cm2)
Or as per client requirements
Media:
Air/ Gas / Liquid – With any media that will not adversely affect SS 316
Measuring Units:
Selection of 8 types Engineering Units
(Kg/Cm2, Bar, PSI, KPA, MMWC, MM Hg, IN WC, IN HG)
Calibration:
Password protection
Display :
5 Digit LED Display 15mm
Min/Max Capture
On / OFF,
Zero adjustment
| Accuracy | ±0.10% of FSD |
| Case | Aluminum Anodize 90mm, |
| Internal Working | Complete SS Internal Parts |
| Thread Connection | 1/4" BSP F |
| Mounting | Bottom |
| Power Supply | 7.5 VDC (1.5V X 5No Alkaline) Duracell type MN 1500 |
| Overpressure | 130% Working |
| Temperature | Storage -40 to +70 Degree Celsius, |
| Operating | 0-70 degree Celsius |
Alongwith Calibration Certificate

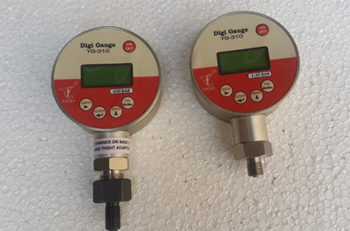

MODEL - YG 310
Technical Specification -STANDARD VERSION: 3.5”
With Battery Charger to charge the batteries
LED lights to work in dark environment
Can work upto 24 hours
Accuracy:
0.075% FSD
High resolution Imported Sensor gauge
Range:
(-) 1 to 1000 kg/cm2
(Vacuum Range:
(-) 1 to 0Kg/cm2, Pressure Range: 0 to 1000 kg/cm2)
Or as per client requirements
Media:
Air/ Gas / Liquid – With any media that will not adversely affect SS 316
Measuring Units:
Selection of 8 types Engineering Units
(Kg/Cm2, Bar, PSI, KPA, MMWC, MM Hg, IN WC, IN HG)
Calibration:
Password protection
Display :
5 Digit LED Display 15mm
Min/Max Capture,
on / OFF, Zero adjustment
| Accuracy | ±0.075% of FSD |
| Case | Aluminum Anodize 90mm, |
| Internal Working | Complete SS Internal Parts |
| Thread Connection | 1/4" BSP F |
| Mounting | Bottom |
| Power Supply | 7.5 VDC (1.5V X 5No Alkaline) Duracell type MN 1500 |
| Overpressure | 130% Working |
| Temperature | Storage -40 to +70 Degree Celsius, |
| Operating | 0-70 degree Celsius |
Alongwith Calibration Certificate

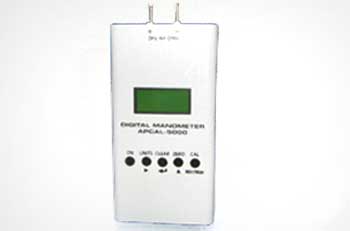

Digital Differential Pressure Gauge / Manometer
MODEL - APCAL 5000
Technical Specification
High resolution Imported Sensor gauge
Media:
Air/ Gas
Display :
8X2 Dot Matrix Display showing various pressure units
Min/Max Capture
On / OFF
| Accuracy | ±0.10% of FSD |
| Case | Aluminum Anodize 90mm, MS Powder Coated |
| Internal Working | Complete SS Internal Parts |
| Thread Connection | 1/4" BSP or tubing (both sides) |
| Overpressure | 130% Working |
| Temperature | Storage -40 to +70 Degree Celsius, |
| Operating | 0-70 degree Celsius |
| Range | 0 to 2 BAR |
| Least count | 0.0001 BAR |
| Accuracy | 0.10% FS |
| Max. Static Line Pressure | 7 BAR |
| Pressure media | DRY INSTRUMENT QUALITY AIR |
| Power | internal battery (6 no of Panasonic ALKALINE type LR03T) |
| Battery Life | Approx 500 Hrs. |
| Process connection | suitable for 4X6 PU tube |
