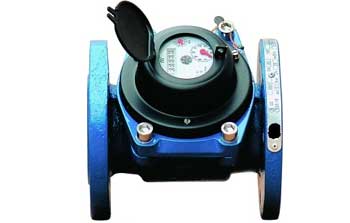

Water Flowmeter

MULTIJET / SINGLE JET FLOW METER

MULTIJET / SINGLE JET FLOW METER having complete dry dial, magnetic drive, straight reading in kl/cubic meters

Operations: In multi jet meters, water enters into the meter casing inlet to the measuring chambers through specially designed holes, rotates the vane wheel pivoted perfectly with jewel bearings for smooth running. Single jet meters are designed to fix the turbine pivot directly in the centre of the body and turbine is free to move on the pivot. The vane wheel/turbine knobs get coupled with the magnet placed in the centre gear passes on rotation to its gears in a ratio to show the digit wheel reading in kilo litres, litres and fraction of litres. The registering system completely is placed in a transparent cup totally sealed in vacuum to protect the entire system free from humidity or entry of air or water.

Features

• Only one moving part the impeller in contact with the water for minimum wear and utmost reliability
• Magnetically driven sealed Register, glass encapsulated option is unconditionally guaranteed against fogging, measuring accuracy confirms to ISO 4064 Class 'B' vaccum sealed registered and keeps the reading clear in the long run

Specification

• Magnetic Type Multi Jet Dry Dial
• Class:  'B' as per IS - 779 / 1994 conforming to ISO - 4064 standards
• Maximum Working Pressure: 10 Bar (16 Bar Optional)
• Maximum Working Temperature: 50 0C
• Body:  Corrosion Proof Copper Alloy
• Coupling Threads: BSP
• Applications: For domestic, agriculture and industrial use
• Size Range: 1/2" to 2" (15 mm to 50 mm)
